The Edwards nXDS10i is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS10. Edwards nXDS10i improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. Edwards nXDS10i pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS10i pumps are designed to be completely field serviceable.
For more information please visit our new website: /https://www.edwardsvacuum.gr/
-
Edwards E2M28 Vacuum Pump
Delivering high ultimate vacuum and rapid pumping speeds
Known for their high ultimate vacuum ranges and rapid pumping speeds, these pumps are now the industry standard in a range of scientific and laboratory applications, and are ideal for backing your small turbomolecular pumps.
EM Series pumps are rugged, mechanical oil-sealed pumps in a compact and quiet design. They feature advanced lubrication circuits, high reliability, and accessories to suit your specific application needs.
Ideal for dealing with extreme gaseous environments such as pharmaceutical freeze drying or refrigeration system evacuation, the EM series is the industry standard for zero contamination of process and effective lubrication under high gas loads.
-
Delivering high ultimate vacuum and rapid pumping speeds
Known for their high ultimate vacuum ranges and rapid pumping speeds, these pumps are now the industry standard in a range of scientific and laboratory applications, and are ideal for backing your small turbomolecular pumps.
EM Series pumps are rugged, mechanical oil-sealed pumps in a compact and quiet design. They feature advanced lubrication circuits, high reliability, and accessories to suit your specific application needs.
Ideal for dealing with extreme gaseous environments such as pharmaceutical freeze drying or refrigeration system evacuation, the EM series is the industry standard for zero contamination of process and effective lubrication under high gas loads.
-
The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With 400,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.
-
The Edwards RV8 dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed. The RV8 has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application. Applications Include use with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, Space research and other vacuum processes.
The Edwards RV8 vacuum pumps have a pumping speed displacement at 60Hz of 6.0 CFM and an ultimate pressure of 1.5 X 10 -3 Torr.
-
The Edwards XDD1 diaphragm pumps are used for backing small compound turbomolecular pumps in clean, high vacuum applications. They comply with EN61010, EN1012, CSA/UL and are designed to be free standing bench top units. The a.c. voltage motor can be used on worldwide supplies ranging from 100 to 115 V, and 200 to 230 V. The d.c. voltage motor runs on 24 V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed. This version is suited to the customer who is building their own a system. Pumps are not supplied with connection cables. A suitable cable should be ordered with the pump.
-
he Edwards RV5 dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed. The Edwards RV5 has superior vapor handling capabilities, while operating quietly. It is very reliable and has accessories to match any application.
Applications Include use with refrigeration dehydration, brake line evacuation, epoxy degassing, sterilization, mass spectrometry, vacuum ovens, lasers, backing combinations, thin film coating, vacuum distillation, freeze drying, space research and other vacuum processes. Edwards RV5 has a pumping speed displacement at 60Hz of 4.1 CFM and an ultimate pressure of 1.5 X 10 -3 Torr
-
Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.
-

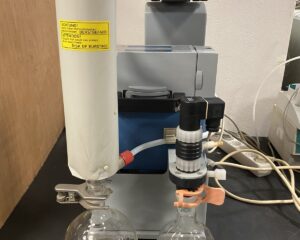

Diaphragm Pumps with Solvent Recovery
Ιncluding :
– Vacuubrand Diaphragm pump MD 4C
– ABM Diaphragm pump EKGF63CX-4
– Vacuubrand Controller CVC 2
– Suction-side separator (AK)
– Pressure-side emission condenser (EK) -
The Wide Range Gauge (WRG) offers the capability of single port pressure measurement in the range atmosphere to 10-9 mbar with a linear output. Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications. The WRG has many novel features, including a new patented striker, pushbutton calibration and set point controls and comprehensive diagnostics. The WRG is a cost-effective vacuum management solution when used either with a Edwards controller or directly integrated into the system controls.
The WRG-SL is compatible with the Edwards Active Digital Controller (ADC).
-
The oil Exhaust Filter NW25 uses high efficiency oil separating
cartridge.
Its function is to purify the exhaust gas from oil or other liquid
aerosol. -
The oil Exhaust Filter NW25 uses high efficiency oil separating cartridge.
Its function is to purify the exhaust gas from oil or other liquid aerosol. -
Ultragrade PERFORMANCE 19-4 Ltr
When you depend on a vacuum system for your production processes, it’s critical that you use the correct vacuum pump oil to ensure the best performance
Vacuum pump oils and technical fluids have been specifically designed to suit vacuum applications. All of our lubricants are tested under laboratory conditions and are validated over thousands of hours of operation. As a result, you can rely on Edwards oils and fluids to enhance performance, extend life and save energy.
ULTRAGRADE Performance oil
Our ULTRAGRADE Performance oils are refined for extreme purity and offer:
- Low vapour pressure, even at high temperatures
- Resilience to the stresses of mechnical pumping.
-
The nEXT85 turbomolecular pump builds upon the success of the EXT75DX to deliver a pump with significantly improved performance in a smaller package. The rotor has been totally re-designed to optimize pump performance and achieve both higher speeds and higher compression while maintaining high levels of reliability. In addition to enhanced performance nEXT85 benefits from the same service and operational functionalities from the larger nEXT range, including field serviceability and in-built intelligence, for a truly class leading product.
