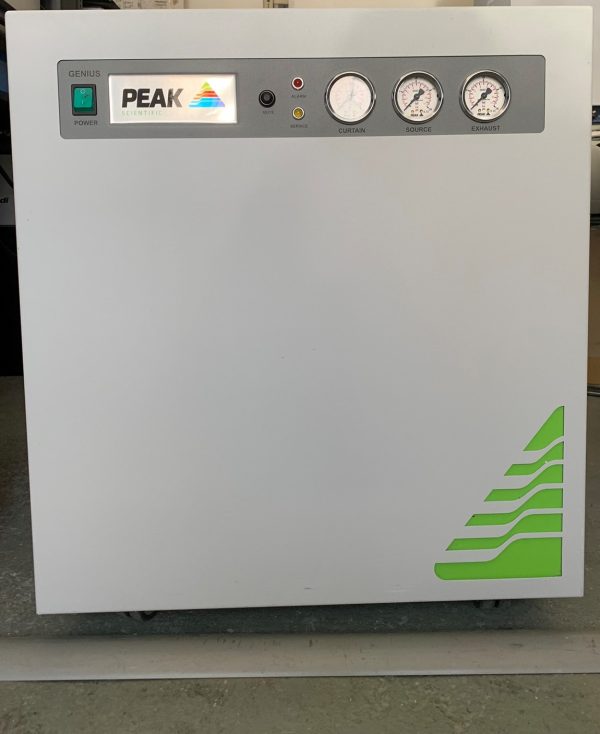

Peak Scientific Instruments Genius 1024 Nitrogen/Dry Air Generator, Refurbished
The Genius 1024 is built around the trusted and proven technology of Peak Scientific’s Genius series of generators. Designed mainly for LC-MS applications, these are self-contained systems featuring integrated compressors, delivering laboratory-grade nitrogen at various pressures and flow rates required by numerous instruments.
Features
- Supports Sciex MS
- Delivers nitrogen as curtain gas and dry air as source and exhaust gas
- Compact, under bench solution with low lifetime running costs
- Compressor based solution, no need for an external air supply
- High-specification latest generation compressors located in insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Minimal set-up required
Product Description
Product Description
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 19*L/min
- Max Output Pressure: 65psi/4.5bar
Gas Type: Air
- Max Gas Flow: 26*L/min
- Max Output Pressure: 100psi/6.9bar
Gas Type: Air
- Max Gas Flow: 25*L/min
- Max Output Pressure: 60psi/4.1bar
Site & Installation
- Gas Outlets Fitting: 3 x 1/4″ BSPP
- Start Up Time: 60 min
- Power Consumption: 1610 VA
- Voltage: 230 ± 10% V
- Frequency: 50 / 60 Hz
- Current: 7 A
- Heat output: 5,490 BTU/hr
- Max Operating Temp: 30°C / 86°F
- Particles: <0.01µm
- Phthalates: none
- Suspended Liquids: none
- Accreditations: CE, CSA
Dimensions & weight
- Size (HxWxD) mm: 709 x 600 x 750 mm
- Size (HxWxD) Inches: 27.9 x 23.6 x 29.5 inches
- Generator Weight: 108.5kg / 238.7lbs
