We offer for sale this Nuaire model NU-480 400E Laminar Extraction Bench:
- Connection Cables, Power cord, Manual.
- Covered with our 3 months guarantee.
Please contact us for more information. Should you have any question please do not hesitate to contact us.
does not include
- the bench that must be placed on.
- installation but available at cost.
- Transport to your premises.

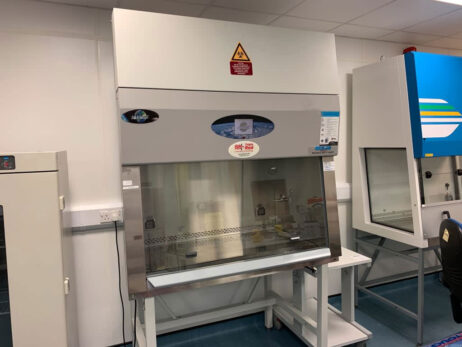

NuAire NU-480 Laminar extraction Bench Biosafety Cabinet

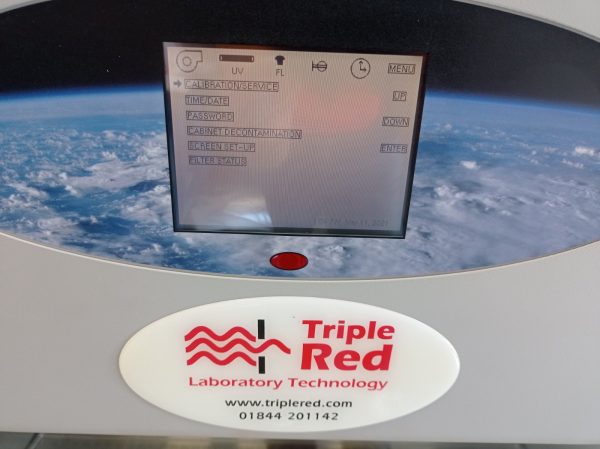

TouchLink2 Electronic Control System
An easy to use color touch screen operates all system functions.
- On/off for lights, blower, and interior outlets.
- Monitors high/low limits for down flow, inflow and sliding window position.
- Password protection locks out unwanted changes to the system.
- Date/clock display and timer function can be used as a laboratory timer, to set purge cycles, outlet timer, UV light timer, auto-run timer, NiteCare night set back, or weekend turn-off.
- Filter status displays remaining filter life
- Complete diagnostic functions for a NSF trained service technician or certifier.
- NEW – BACnet RS-485 interface provides the Building Automation System (BAS) a two-way communication link to query the TouchLink2 operating information. View airflow data, alarm status, etc. and control TouchLink2 for facility energy savings by initiating NiteCare (Night Setback System).
IntelliFlow Airflow Control
Assure optimal biological safety cabinet performance by monitoring, displaying, and controlling real time airflow with the same methods of you annual certifier with dual thermistor airflow sensors powered by measurement instrument company TSI™.
Night setback system allows for an energy saving sterile working environment when the cabinet is not in use.
Exclusive system to aid in current decontamination technique such as formaldehyde, H2O2, or CD Systems.
A 10° sloped front window creates a larger working environment for the user while allowing for variations in movements aiding in repetitious activities.
Critical Cleaning Components
A hinged wing window frame opens for cleaning behind the sash.
Energy Saver Motor
NuAire ultra-high efficiency motor technology lowers energy costs while increasing filter life from the NSF minimum requirement of 50% (3 year equivalent life) to 300% or higher (10 or more years).
Experience Ergonomics – Over 640 muscles at work.
NuAire Biological Safety Cabinets are designed to create an ergonomically correct environment reducing user fatigue and work place injuries.
- Maximum knee/thigh clearance that improves the user’s ability to assume a proper posture. The maximum knee/thigh clearance is accomplished by a design improvement that reduced the plenum height beneath the work surface.
- An adjustable base stand provides the ability for laboratory personnel to optimize ergonomic conditions improving leg and forearm support. A heavy duty plastic armrest minimizes cold conduction and provides additional forearm support.
- Cool white lighting and a polished edge window reduces glare allowing for greater visibility and better sight lines to the effective work zone area reducing awkward posture resulting in less eye fatigue and/or neck strain.
- NuAire Biological Safety Cabinets provide the largest effective work zone area available which helps reduce arm/neck/shoulder strain.
- Our ultra-high efficiency motor runs quieter with fewer vibrations creating less stress on the body.
- Additional accessories such as an adjustable footrest, elbow rests, turntable, and ergonomically designed chair enhances the user’s ergonomic working environment.
Unidirectional airflow moving along parallel flow lines at a constant velocity of 60 fpm (0.30 m/s) minimizes air turbulence within the work zone lessening the chance for cross contamination.
Dynamic Air Barrier
Strong inflow air velocity of 105 fpm (0.53 m/s) over an aerodynamic airfoil creates maximum personnel protection.
HEPEX™ Zero Leak Airflow System
The HEPEX™ plenum inflates to provide quiet uniform air without transferring vibration. Positive pressure chambers and ducts are surrounded by negative pressure eliminating potential leaks. HEPEX™ fabrics are incredibly durable. They are flameproof, provide a barrier against water, gases, fluid, and dust as well as resist to chemicals, oils, and greases. It even holds antibacterial properties and is impregnable meaning harmful materials become trapped in the filters.
Pressure Tight Construction
Constructed of high grade stainless steel, a weld shell cabinet with back panel minimizes the chance for potential leaks while providing access for maintenance or system upgrades.
Vibration and sound control
Biological Test Assurance
NuAire biosafety cabinets are tested in laboratory extremes to ensure maximum personnel, product, and environmental protection.
|Nominal Size||4 ft. (1.2 m)|
|Style of Cabinet||Bench top/console with optional base stand|
|Sash Height||10” (254 mm) / 8″ (203 mm)|
|Exterior Dimensions (W x D x H) in. [mm]||53 ⅝ x 33 x 63 (1362 x 838 x 1572)|
|Interior Dimensions (W x D x H) in. [mm]||46 ⅜ x 26 ⅛ x 28 ½ (1178 x 664 x 724)|
|Weight||565 lbs. / 256 kg.|
|Inflow Velocity||105 fpm (.53 m/s)|
|Downflow Velocity||60 fpm (0.30 m/s)|
|Heat Rejected, BTU, Per Hour
|10 (254) / 8 (203) opening
10(254) / 8(203) opening
|<63 dBa / <55 dBa|
|Light Intensity foot-candles (LUX)||90 – 120 (968 – 1291)|
|Warranty||5 Year Parts and Labor (US & CA)
6 Year Parts (Intl)
|Accolades||NSF/ANSI 49, EN12469, UL, UL-C, CE, Energy Saver, Personnel Environmental Protection, RoHS|
Please note specifications are subject to change. Please contact Supplier to verify before purchase.
Motor speed control
Internal exhaust dampener
Permanent Plenum w/ Quick Release
Supply HEPA Filter 99.99% @ 0.3 microns
Exhaust HEPA Filter 99.99% @ 0.3 microns
Front Filter Removal
Fluorescent Cool White Lighting
Frameless Sliding Tempered Glass
Heavy Duty Ergo Armrest
Removable Work Tray
Metal Diffuser over Supply Filter
DECON 101 – unique method to sealing the biological safety cabinet for decontamination.

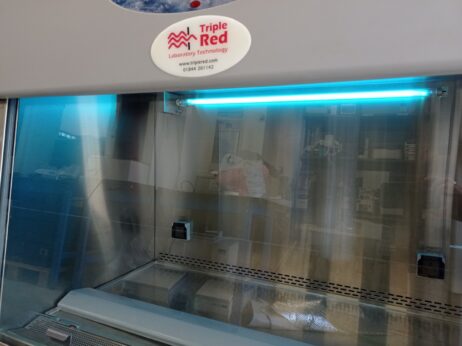

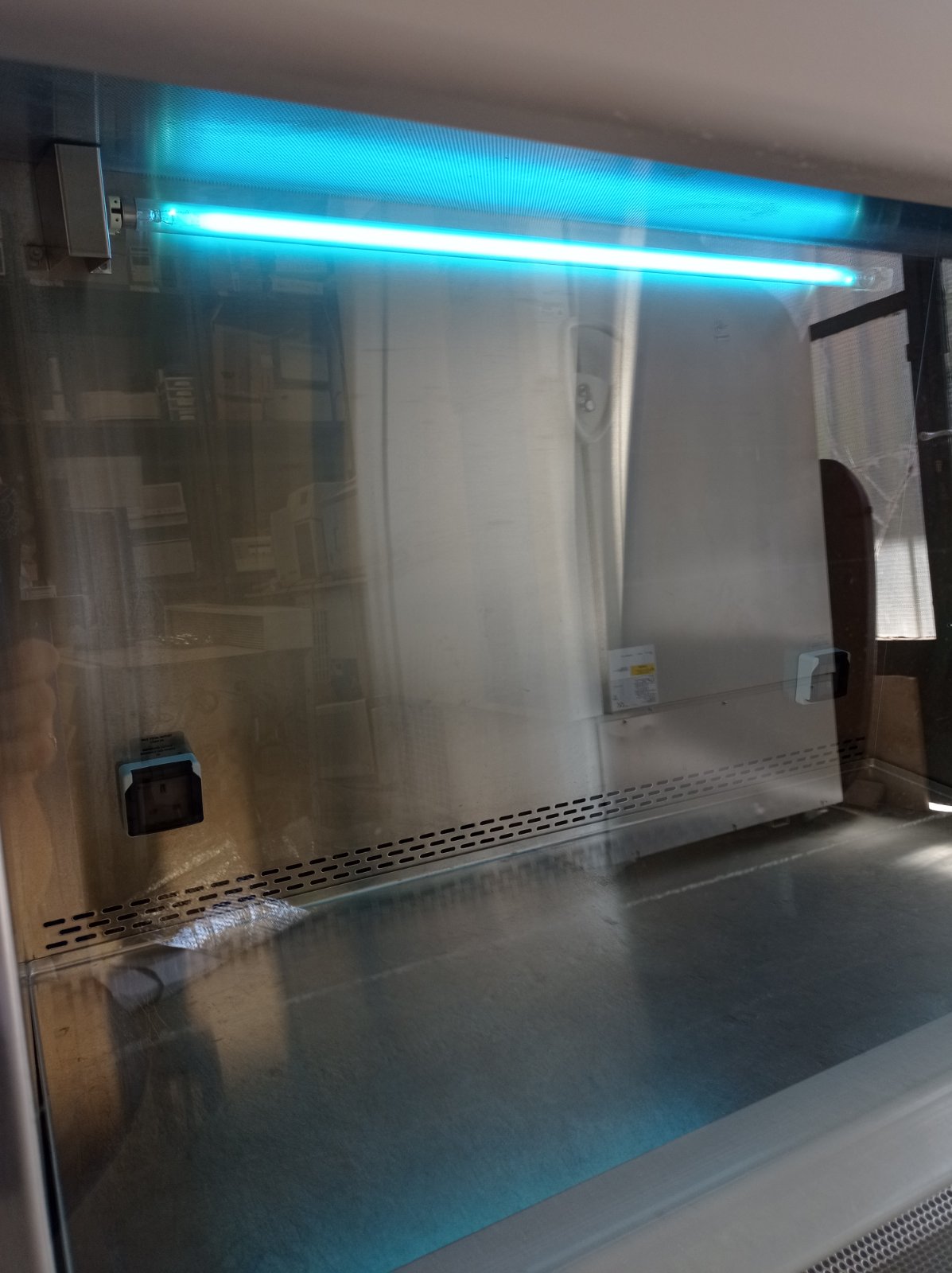

Germicidal UV Light w/ Window Interlock
Additional Duplex Outlets
IV Bar w/ Hooks
Base Support Stands
Storage Support Stands
Adjustable Support Stands
Prop up work tray
Additional Service Valves
ULPA Filters 99.999% @ 0.12 Microns
Storage Pull-Out Trays
Permanent Plenum w/ Quick Release
Decorative Side Panels
Sinks w/ Hot/Cold or DI Faucets
Heated Work Surface
