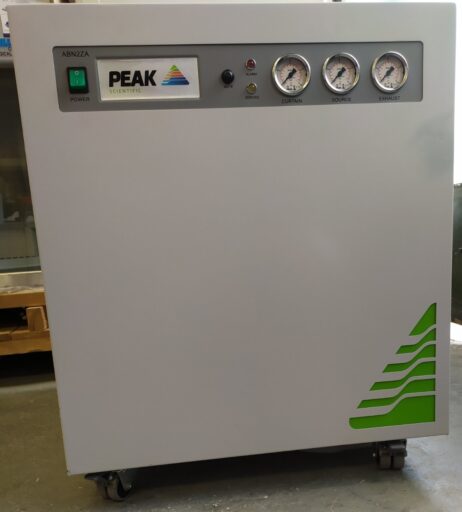

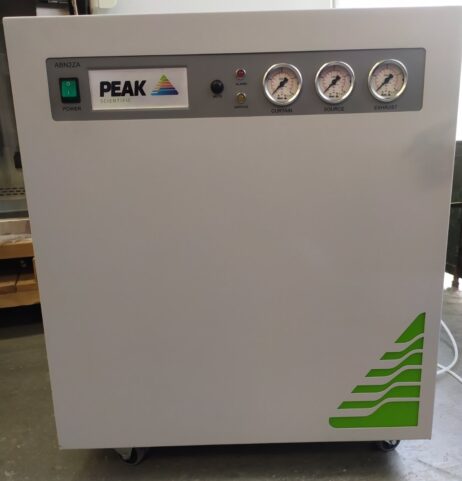

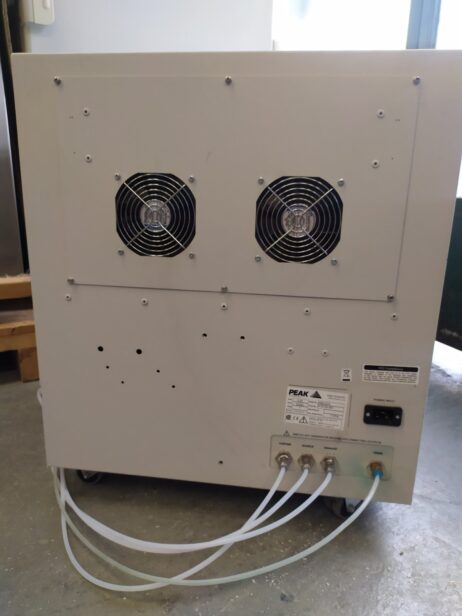

Peak Scientific Instruments Genius ABN2ZA Nitrogen Generator

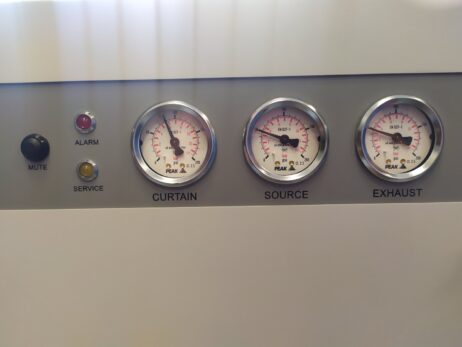

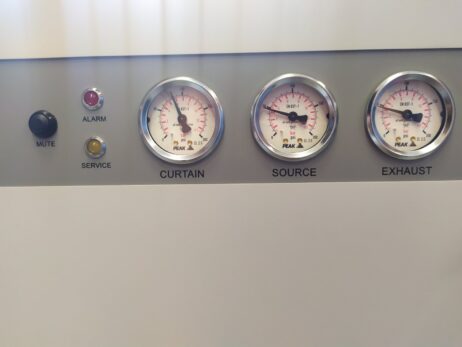

The Genius ABN2ZA is a three gas output system providing nitrogen and dry air to supply curtain, source, and exhaust gas. This generator is compatible with a
wide range of SCIEX LCMS instruments up to and including the 4600
Triple TOF. The ABN2ZA is built around the trusted and proven
technology of Peak Scientific’s Genius Series of generators.
Designed mainly for LCMS applications, these are selfcontained
systems featuring integrated compressors, delivering laboratorygrade
nitrogen at various pressures and flow rates required by numerous instruments.
- Gas types Nitrogen, Air
- Integrated compressor: Yes
- Application Types: Suitable for selected SCIEX LCMS instruments
Product Description
Technical Specifications:
Genius ABN2ZA Nitrogen Generators
Gas Type: Nitrogen
Max Gas Flow: 12L/min
Max Output Pressure: 80psi/5.5bar
Gas Type: Air
Max Gas Flow: 24L/min
Max Output Pressure: 110psi/7.6bar
Gas Type: Air
Max Gas Flow: 8L/min
Max Output Pressure: 60psi/4.1bar
Max Output Pressure: 80psi/5.5bar
Voltage: 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 7 Amps
Accreditations: CSA, CE
Size (HxWxD) mm 713 x 600 x 750 mm
Size (HxWxD) Inches 28.1 x 23.6 x 29.5 inches
Generator Weight 108kg / 237.6lbs
